COBRA V2
0,9 m
Span
730 g
RTF
56 g/dm²
Wing load
feather (1)_edited.png
-STL files
-3mf bambu studio
-G-codes
-Scheme design
3 Schemes
Eclipson cobra T tail version
Eclipson cobra V tail version
50mm EDF
Integrated wheel
Big internal space
Hidden flex hinges

ASSEMBLY GUIDE

SPECIFICATIONS

                                    LW-PLA     PLA
PRINTED WEIGHT             350g       650g

TAKE OFF WEIGHT            730g      950g
STALL SPEED                 26km/h  35km/h
WING LOADING             56g/dm²  73g/dm²

WING SPAN                 900mm
WING SURFACE            13dm²
WING ASPECT RATIO    6
LENGTH                      860mm

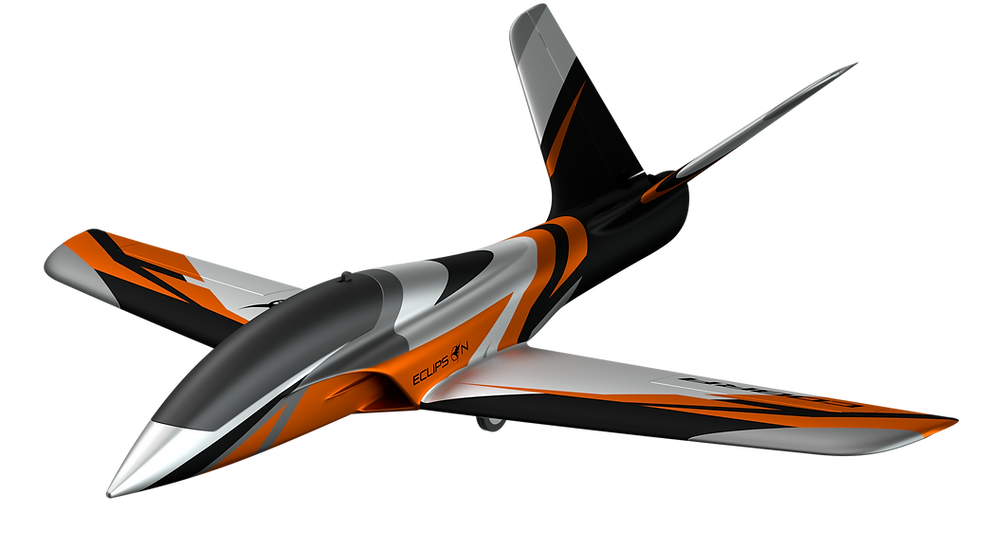

Eclipson Cobra – Improved Version 2 is an agile and fast EDF sport jet featuring a unique tail configuration rarely seen in this class of aircraft. The model has two tail configurations: a V-tail or a T-tail, allowing builders to select the setup that best suits their flying style. From an aerodynamic standpoint, the performance differences are minimal; however, the T-tail offers improved authority during knife-edge manoeuvres. Another distinctive feature of the Cobra is its innovative landing gear design. The aircraft uses a tail-dragger configuration with the main wheels fully integrated into the wings. As Leonardo da Vinci said, “Simplicity is the ultimate sophistication.” This landing gear perfectly reflects that philosophy: it is functional, lightweight, easy to print and assemble, robust, low-drag, and visually unobtrusive. Costly carbon-fiber tubes have been replaced with 3D-printed wing spars, delivering the required structural strength while simplifying construction and reducing overall cost.

ARRANGEMENT DRAWING AND PRINTING PARAMETERS​

Cobra V2.jpg

SHOPPING LIST

ALL THE COMPONENTS THAT YOU HAVE TO BUY TO FLY THE AIRPLANE

3D PRINTER
MIN PRINTING VOLUME - 180x180X200 (X,Y,Z)
NOZZLE DIAMETER - 0,4 mm


Recommended

FILAMENT
QUANTITY - ≈350g (LW-PLA) ≈650g (PLA)

Recommended


ECLIPSON STANDARD EDF PACK
SERVOS NEEDED - x4

Recommended


BATTERY
VOLTAGE - 14,8V (4S)
CAPACITY - 1300 mAh to 2000 mAh
DISCHARGE - >40C

Recommended
BAT6


RADIO CONTROL SYSTEM
MIN CHANNELS - 5CH

Recommended


OTHER PARTS
-PUSH RODS - D1,2mm (min length 650mm)  2units

-SCREW - M2X8mm (aprox) 20units
-STEEL ROD - D2mm (Length 40mm) 1units
-PUSH RODS CONNECTORS  4units (optional)

-RUBBER BAND- L50mm (aprox.)
-GLUE - cyanoacrylate

-VELCRO

Recommended
