FW 190A

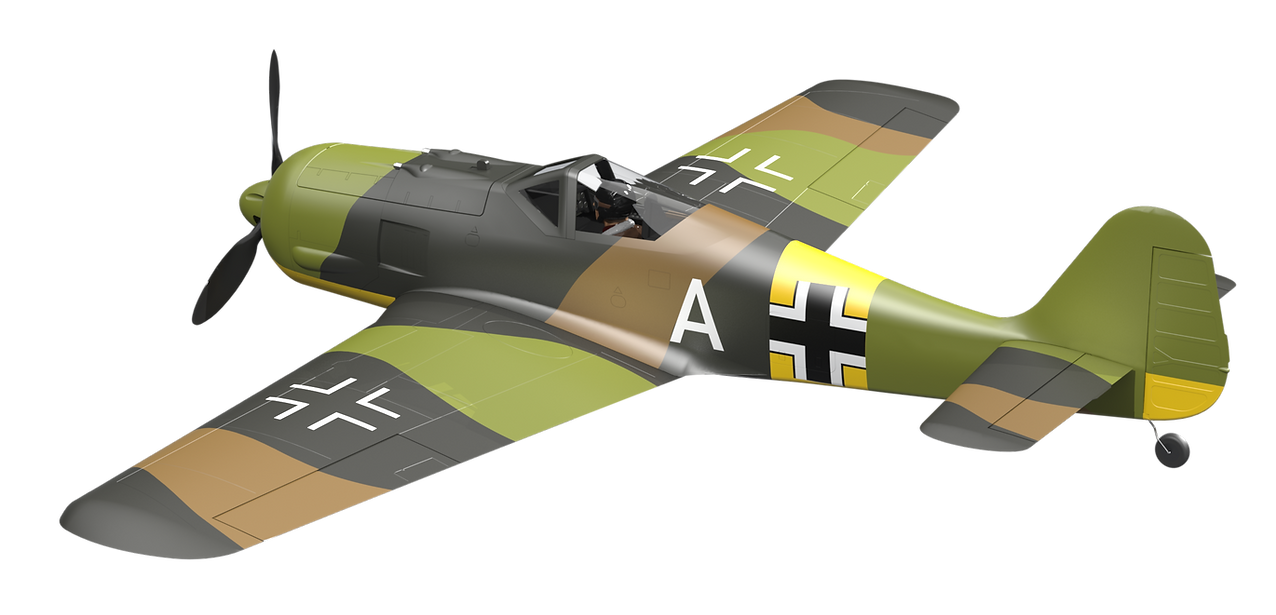

This is our 3D printed version of a WW2 legend, the Focke-Wulf FW-190A. This model includes the same 3D printed retracts successfully used on our Mustang P-51.  These are functional, sturdy and very cheap compared with commercial alloy retracts. In addition to this, as a novelty, this model includes an ultra scale cockpit where the windows are made using common plastic bottles. You can even print the pilot, seat, gauges etc. As usual in our designs, most of the layers have zero retractions/travel which improves the quality and strength of the prints. It also reduces the probability of nozzle clogging.

Includes:
-STL files

-Scheme design
-G-codes for PLA and LW-PLA

€37

Features:
-3D printed retracts
-Printed without retractions

-Ultra scale cockpit

3D printed fw190
3D printed retracts
Ultra scale cockpit

SPECIFICATIONS

                                    LW-PLA     PLA
PRINTED WEIGHT             440g       800g

TAKE OFF WEIGHT            850g      1300g
STALL SPEED                 26km/h  32km/h
WING LOADING             40g/dm²  61g/dm²

WING SPAN                 1100mm (43")
WING SURFACE            21dm²
WING ASPECT RATIO    5,2
LENGTH                      900mm

ARRANGEMENT DRAWING AND PRINTING PARAMETERS


SHOPPING LIST

ALL THE COMPONENTS THAT YOU HAVE TO BUY TO FLY THE AIRPLANE

3D PRINTER
MIN PRINTING VOLUME - 210x210X200 (X,Y,Z)
NOZZLE DIAMETER - 0,4 mm


Recommended

FILAMENT
QUANTITY -  ≈440g (LW-PLA) or ≈800g (PLA)

Recommended


ECLIPSON STANDARD POWER PACK
SERVOS NEEDED - x6

Recommended


BATTERY
VOLTAGE - 11,1V (3S)
CAPACITY - 1500 mAh
DISCHARGE - >20C

Recommended
BAT2



RADIO CONTROL SYSTEM
MIN CHANNELS - 7CH

Recommended


OTHER PARTS
-PUSH RODS - D1,2mm (min length 600mm)  5units
-STEEL ROD - D3
mm (Length 130mm) 2units
-CF TUBE - D10mm (Length 400mm) 1unit
-STOP COLLARS D3,1mm  2units
-
STOP COLLARS D2,1mm  1unit
-BOLT - M3X15mm (with nuts and washers)  4units
-
BOLT - M3X25mm (with nuts and washers)  3units
-SCREW - M2X8mm (aprox) 40units
-GLUE - cyanoacrylate
-
PUSH RODS CONNECTORS  4units
-RUBBER BAND- L50mm (aprox.)


Recommended
